Hybrid solar system include solar panel, hybrid inverter, battery bank and accessories etc. Solar panel convert sunlight into electricity, battery bank store energy for later use.Hybrid solar systems have both on-grid and off-grid function, allowing you to continue running on solar power even if state grid outage
اسم العلامة التجارية :
SAIL SOLARرقم الموديل :
SAS100KW-Hyنوع الألواح الشمسية :
Monoشهادة :
CE/TUV/UL/VDE/INMETROأوم :
Yesالجهد الناتج (V) :
380v/400v/415vتصميم نظام ما قبل البيع :
Yesتردد الإخراج :
50hz/60hzنوع العاكس :
Hybridنوع التركيب :
Roof, Ground and Carport

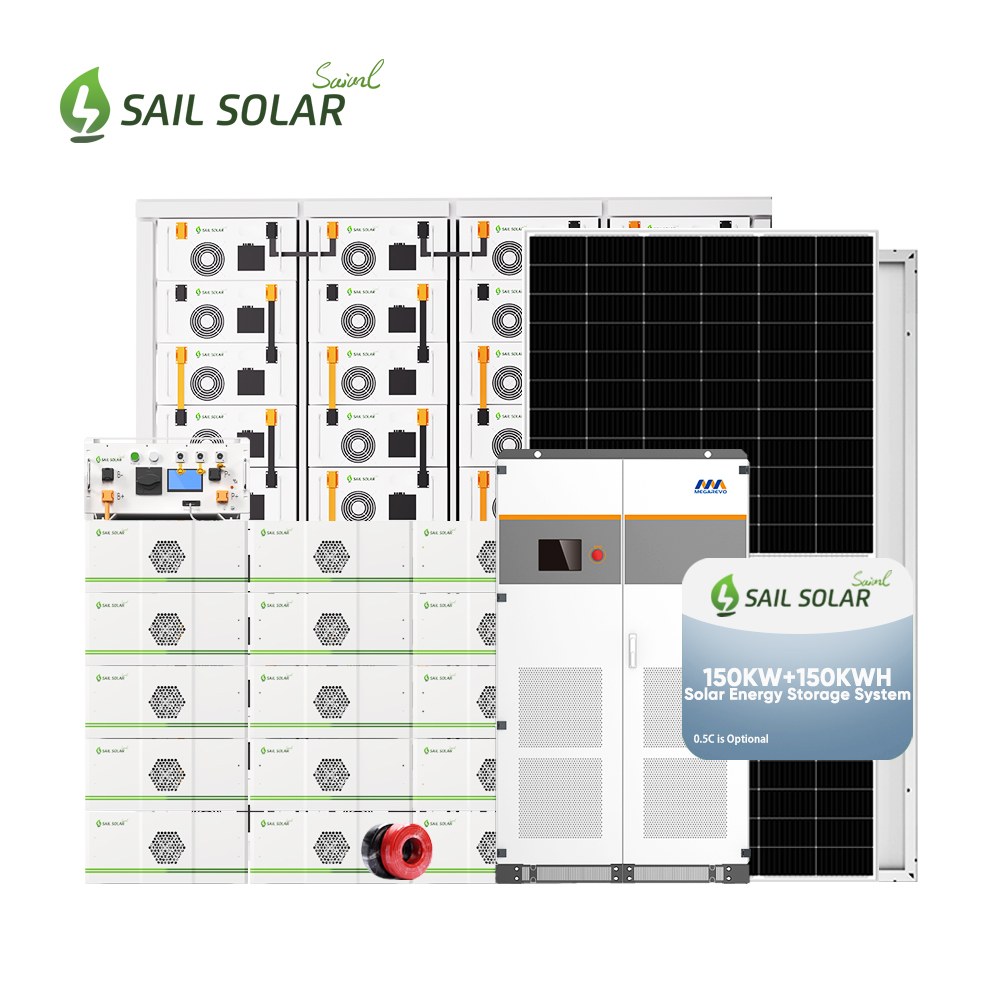

What is a hybrid solar system?
A hybrid solar system is a solar power generation system that combines the characteristics of a grid-connected system and an off-grid system. This system usually contains the following main components: solar panels, power network, inverter, battery, meter and generator. A hybrid solar system is able to give priority to grid power when there is a grid, while generating electricity through solar panels, and automatically switch to off-grid mode when the grid fails, using batteries and generators for power.

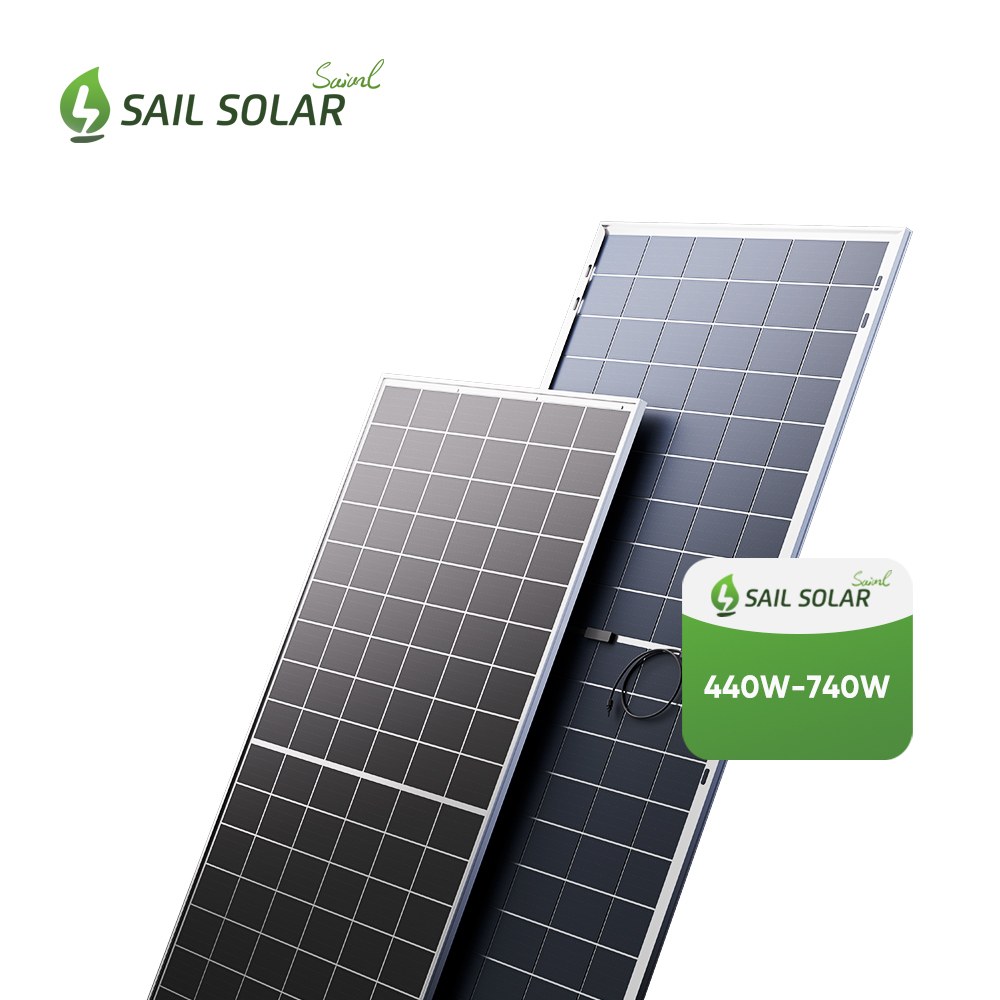

Solar Panel
Mono solar panel, High Efficiency N type half cell/bifacial solar modules
> 30 years Warranty
> Highest conversion efficiency over 23%
> Anti-reflective and anti-soiling surface power, loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
Various hybrid Inverter
>Large capacity all-in-one hybrid inverter for commercial application
>Seamless on/off grid transfer
>Programmable working mode
>Supports remote control of DG
>Touchscreen LCD

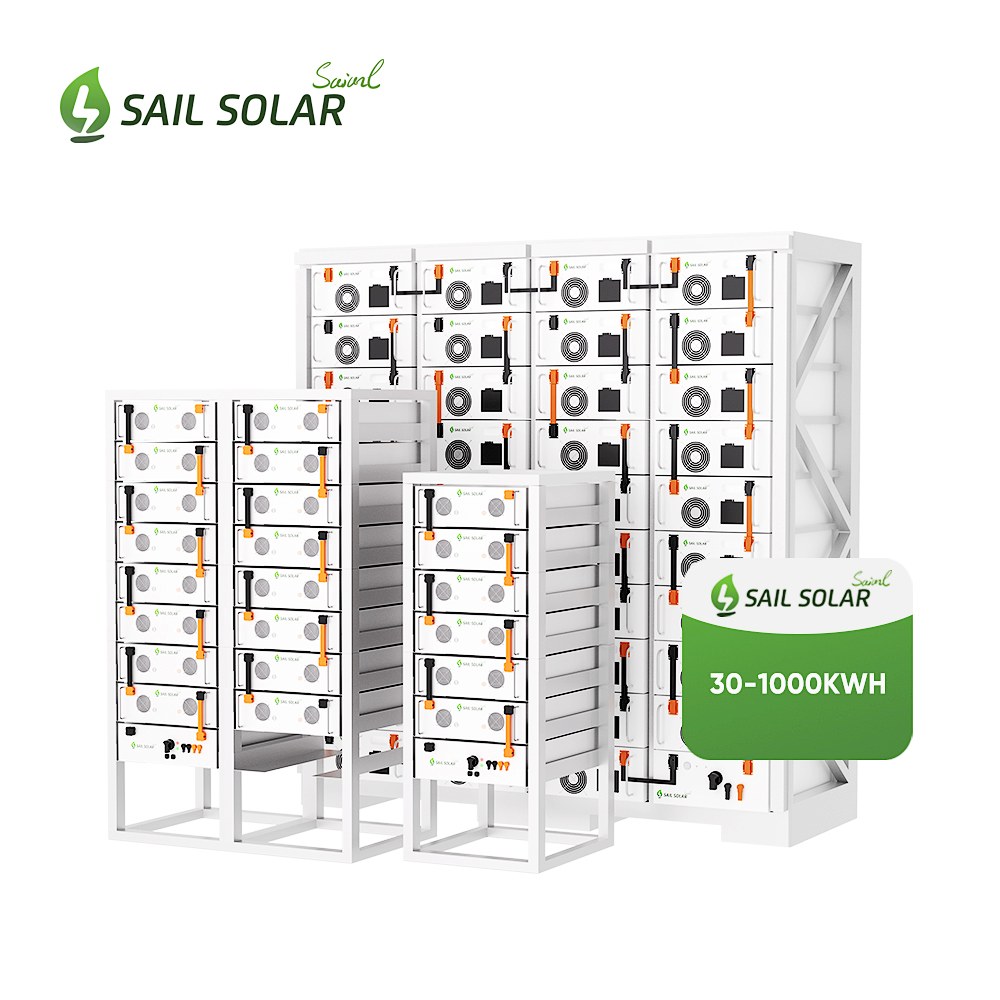

Lithium Battery
Easy to install and use
Customized capacity, just plug and play to minimize the installation time and cost Compact and fashionable design fits in your sweet home environment.
Compatiblity
Compatible with most of the available Hybrid inverters
Safety Cert
UL1642, IEC62619, CE, UN38.3, MSDS.
Long life and safety
Vertical industry integration ensures more than 6000 cycles
with 80% DoD Safe Lithium iron phosphate battery cell
Intelligent
Each battery with independent BMS system manages power output smartly and effectively
(Note: Gel battery is optional)
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> Lighting Protection
> IP65 Waterproof
> Applicable for outdoor PV systems
Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
DC Isolating Switch
> Rated Voltage: 1000VDC to 1200VDC > Rated Current: 10A/16A/20A/25A/32A
> IP66 Waterproof degree
> Certificates: CE/CB/TUV/IEC/SAA
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
