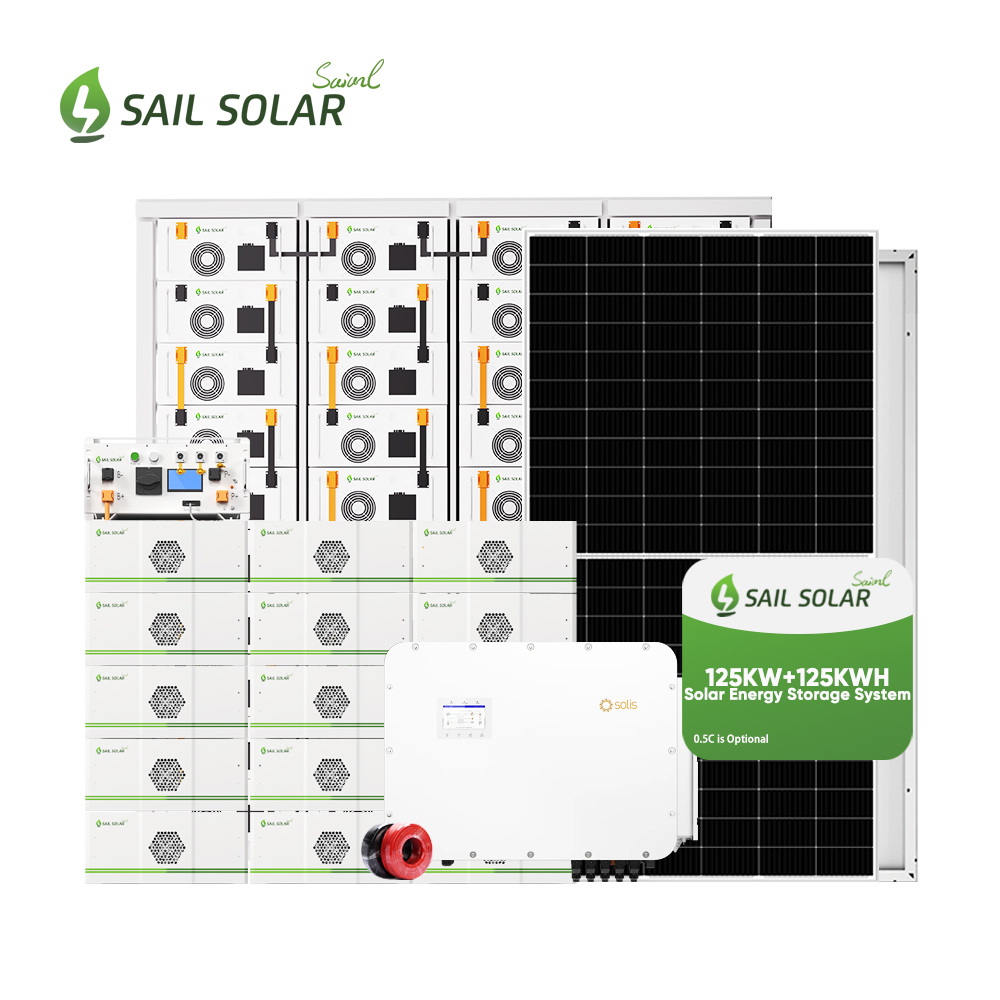

The 125 kW Solis hybrid system combines high-efficiency solar energy generation with intelligent energy storage and grid interaction. Designed for commercial and industrial applications, it enables optimized energy usage, peak load management, and reliable backup during grid outages.
اسم العلامة التجارية :
SAIL SOLARقوة النظام :
125KWنوع النظام :
Hybridالجهد المطبق :
EU Versionنوع الألواح الشمسية :
Mono-crystallineنوع التثبيت :
Roof/Ground/Water Surfaceالتخصيص :
Acceptableتصميم ما قبل البيع :
Acceptableطلب :
Industrial & Commercialشهادة :
CE/MCS/TUV/VDE/UL/CSA/ETL/CECأوم :
Acceptable
-Solis 125 kW hybrid inverter with multiple MPPTs for high solar yield
-Supports connection to high-voltage lithium battery banks
-Seamless switching between solar, battery, and grid power
-Ideal for peak shaving, self-consumption, and emergency backup
-Intelligent monitoring and energy management via Solis Cloud
-Compatible with smart meters and external EMS
PV Input:
Multiple strings of solar panels connect to the Solis inverter’s MPPT inputs through a DC combiner box.
Battery Connection:
High-voltage lithium batteries are connected directly to the inverter’s battery terminals, managed via a Battery Management System (BMS) and protected with DC breakers. Communication is typically through CAN or RS485.
AC Grid Connection:
The inverter is connected to the three-phase grid via an AC distribution panel, allowing for bidirectional power flow and export control.
Load Connection:
Critical and non-critical loads are connected to the AC output of the inverter. The system supports load prioritization and optional EPS (Emergency Power Supply) output for backup.
Monitoring & Control:
The system communicates with smart meters and monitoring platforms (e.g., SolisCloud) for real-time energy management and remote diagnostics.

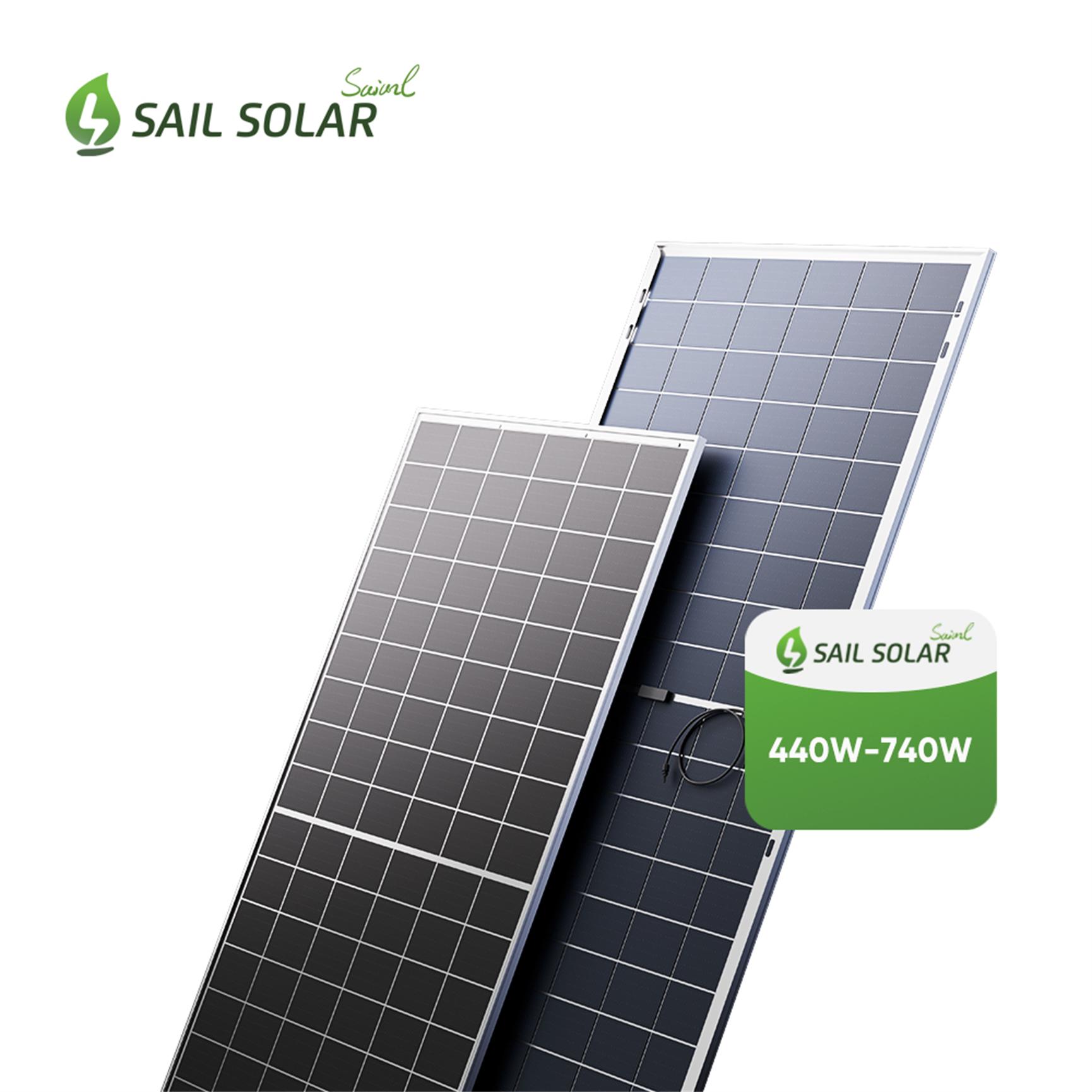

Solar Panel
Power output: 440-740W
Cell type: Monocrystalline (TOPCon)
Module efficiency: ~21%–23%
Glass: High-transparency tempered glass
Frame: Anodized aluminum alloy
Certifications: IEC 61215 / 61730, CE, UL (varies by model)
Ideal for: Ground-mounted solar farms, commercial rooftops

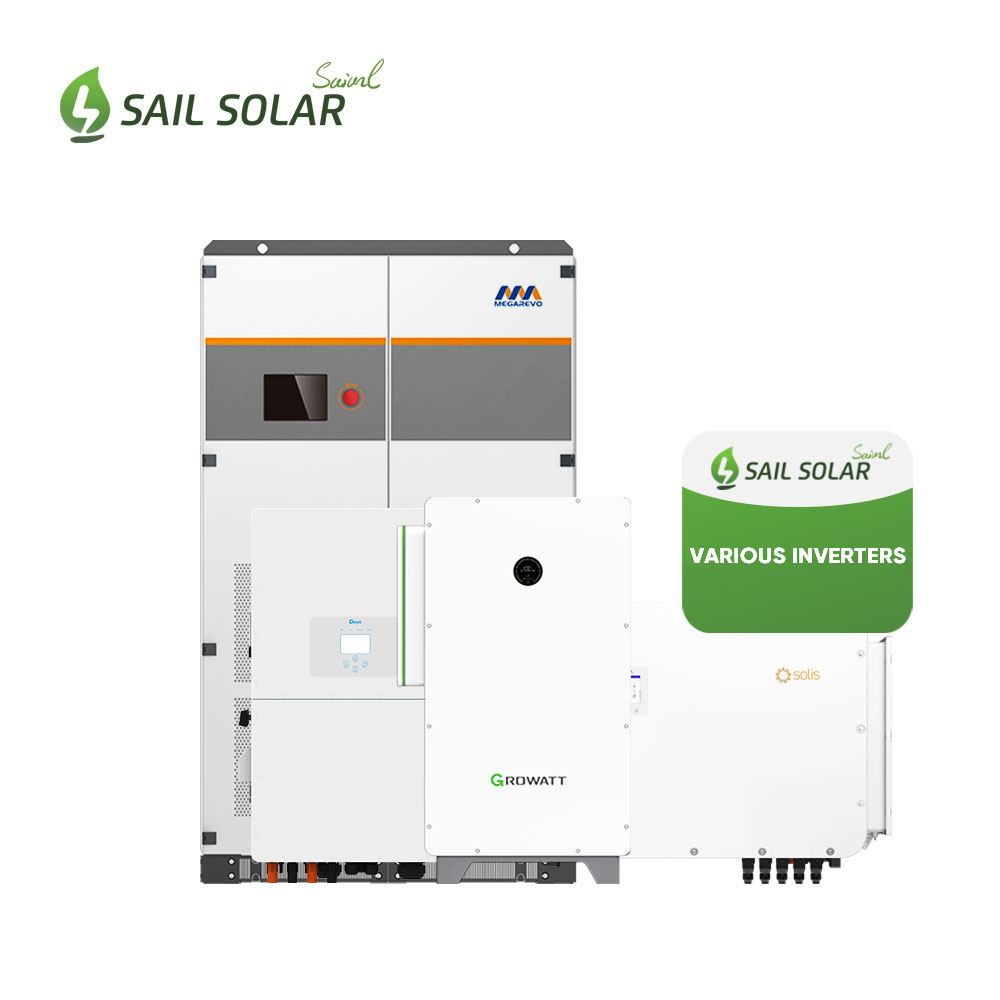

The Solis 125kW hybrid inverter is a high-voltage, three-phase solution designed for commercial and industrial solar-plus-storage systems. It enables both grid‑tie and energy storage operations, making it ideal for applications like peak shaving, self-consumption, backup power, and microgrid integration.
Key Features & Benefits:
Power Capacity:
Up to 150 kW DC input and 100 kW AC output (nominal), with a maximum AC output around 110 kVA—supporting system flexibility and efficiency
MPPT Configuration:
Either 8 or 10 MPPT trackers depending on unspecified sub-model , allowing fine-tuning for multiple PV strings and orientations
High Efficiency:
Peak efficiency up to 98.7–99%, enabling excellent solar-to-electricity conversion under varying conditions

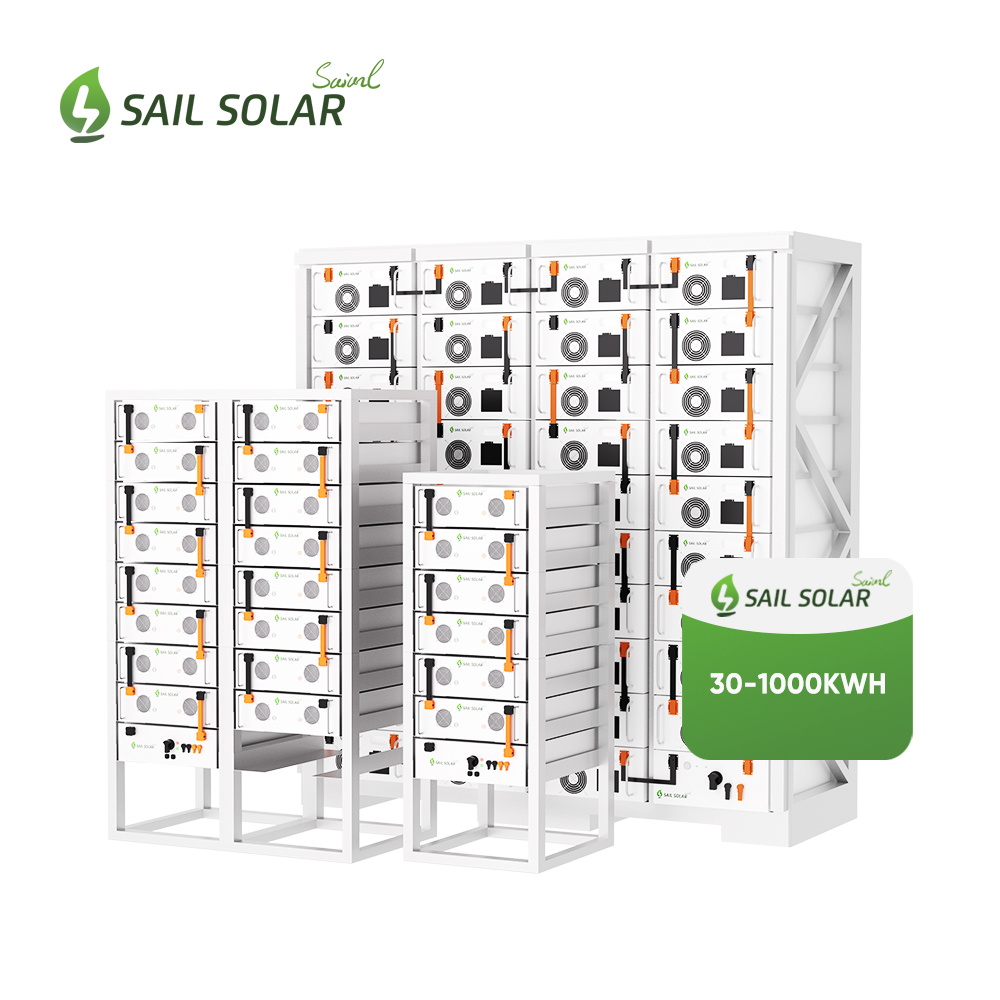

The 125 kWh high-voltage lithium battery pack (409.6V, 314Ah) is manufactured through a precise, multi-step process to ensure high safety, energy density, and long cycle life:
Cell Production:
High-quality lithium iron phosphate (LFP) or NMC cells (typically prismatic) are produced via electrode coating, drying, calendaring, stacking/winding, electrolyte filling, and cell formation.
Cell Matching & Grouping:
Cells are tested, sorted, and matched by voltage, capacity, and internal resistance to ensure consistency within each module.
Module Assembly:
Cells are assembled into battery modules with mechanical supports, busbars, thermal pads, and voltage/current sensors. Each module is equipped with a local BMS.
Pack Integration:
Modules are connected in series to reach the system voltage (409.6V). The battery pack is integrated with a master BMS, HV relay, fuse, current sensor, pre-charge circuit, and thermal management system.
Enclosure & Safety:
The battery pack is enclosed in a fire-resistant, IP-rated cabinet or container, with built-in temperature sensors and overvoltage/overcurrent protection.
Testing & Calibration:
The full pack undergoes insulation tests, performance validation, communication checks, and charge/discharge cycles before shipment.
Accessories
Cable
> PV DC Cable 4mm2 6mm2 10mm2, etc
> AC Cable
> MC4 solar compatible connectors
Installation Tools
Whole set tools of Installing solar system, Crimping pv connector with cable.
> Solar Crimper
> Connector Wrench
PV Combiner Box
> Customized pv combiner box for solar panels connection
> Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included
> IP65 Waterproof, applicable for outdoor PV systems
Mounting Rackets
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
